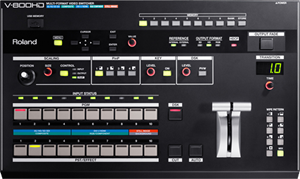

Detalle del producto
Ocho canales multi-formato con Escaladores independientes. Gran variedad de formatos de salida con Multiviewer incorporado.
Cambiar libremente de video entre 1080dp a una calidad que supera incluso la de emisión. Soporte completo para las entradas de video y para las salidas, en una amplia gama de resoluciones. Una nueva generación Switcher Multi-formato con alta calidad integrada en escaladores en todas las entradas.
- 8 Input (4 SDI/Compuestas4 DVI-I/HDMI/RGB/Componentes)
- 6 Output (2 SDI + 2 DVI-D/HDMI + RGB/Componentes + Compuesto
- Proceso 4:4:4/10-bit- 1 /E (Key, PinP) + DSK
- Built-in frame synchronizers and scalers on all input
- SDI support: 3G, HD, and SD
- DVI-D / RGB / soporte HDMI
- Input status LEDs
- Soporte HDCP
- Live access to two still-image sources
- 10 cross-points assignables
- Multiviewer monitor output
Especificaciones técnicas
| Video Processing | |
|---|---|
| Processing | Y:Pb:Pr, 4:4:4, 10-bit |
| Supported Formats | |
| Video | 480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p * The SDI input can input the same frame rate as a setup menu setting. |
| PC | 640 x 480/60Hz *1, 800 x 600/60Hz *1 *3, 1024 x 768/60Hz *1, 1280 x 768/60Hz *1, 1280 x 1024/60Hz *1, 1366 x 768/60Hz *1, 1400 x 1050/60Hz *1, 1600 x 1200/60Hz, 1920x1080/60 Hz, 1920 x 1200/60Hz *2 * Conforms to VESA DMT Version 1.0 Revision 10 *1 Output refresh rate is 75 Hz when frame rate is set to 50 Hz *2 Reduced blanking *3 When Reference is set to External, the resolution of 800 x 600 and refresh rate of 60 Hz are no longer compliant with the VESA standard. This means that display on some devices may not be possible in this situation. |
| Still Image | Windows® Bitmap File (.bmp) * Maximum 1920 x 1200 pixels, 24 bit per pixel, uncompressed |
| Input/Output Level and Impedance | |
| Composite | 1.0 Vp-p, 75 ohms |
| Analog HD/RGB | 0.7 Vp-p, 75 ohms (H, V : 5 VTTL) |
| Input Connectors | |
| SDI (3G/HD/SD) | BNC type x 4 * Conforms to SMPTE 424M (Level-A), 292M, 259M-C |
| DVI-I/HDMI | DVI-I type x 4 * Select DVI-A or DVI-D/HDMI using menu per channel |
| Analog Video HD | Component (Mini D-Sub 15 pin type) x 4 * Combined use with Analog RGB |
| Analog Video SD | Composite (BNC type) x 4 * Select Composite or SDI using menu per channel |
| Analog RGB | Mini D-Sub 15 pin type x 4 * Combined use with Analog HD (Component) * Select DVI-D/HDMI or Analog RGB using menu per channel |
| Output Connectors | |
| SDI (3G/HD/SD) | BNC type x 2 * Conforms to SMPTE 424M (Level-A), 292M, 259M-C |
| DVI-D/HDMI | DVI-D type x 2 HDMI x 1 (for multi-view monitor) |
| Analog Video HD | Component (Mini D-Sub 15 pin type) x 4 * Combined use with Analog RGB |
| Analog Video SD | Composite (BNC type) x 1 |
| Analog RGB | Mini D-Sub 15 pin type x 1 * Combined use with Analog HD (Component) |
| Other Connectors | |
| Tally | Mini D-Sub 15 pin type x 2 * Input (max): 12V, 200 mA Open collector Type |
| Reference | BNC type (IN, THRU) * Black Burst (Sync to frames), Bi-Level, Tri-Level |
| MIDI | 5 pin DIN type (IN, OUT/THRU) |
| RS-232C | D-Sub 9 pin type x 1 |
| USB port (host) | A type x 1 (for USB memory) |
| Effects | |
| Transition | Cut, Mix, Wipe (9 patterns) |
| Composition | PinP, DSK, Chroma Key, Luminance Key, External Key |
| Others | Output Fade, Output Freeze |
| Others | |
| Power Supply | AC 115 V, AC 117 V, AC 220 V, AC 230 V, AC 240 V (50/60 Hz) |
| Power Consumption | 75 W |
| Accessories | Power Cord, Rack Mount Angle (2), Input Template, Owner’s Manual |
| Size and Weight | |
| Width | 482 mm 19 inches |
| Depth | 274.6 mm 10-13/16 inches |
| Height | 115.9 mm 4-10/16 inches |
| Weight | 5.5 kg 12 lbs. 3 oz. |
* This product is a Class A digital device under FCC part 15.
